G1 Transformers Bumblebee

Free
4 like(s).
LICENSE
CC BY-NC-ND - Attribution - Non Commercial - No Derivatives
By downloading this thing, you agree to abide by the license

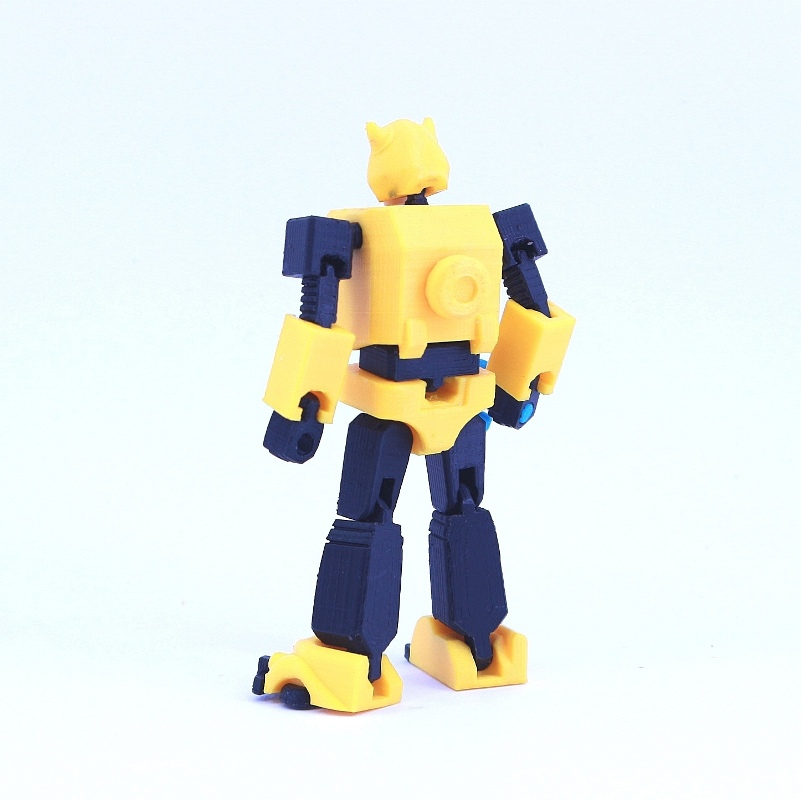

G1 Bumblebee, fully articulated model but not transformable.

VIDEO PREVIEW: Here
More Updates: Here

  • Skale: 1:30 (10cm)
  • Coloring can be done by using different color of filament (detail on files name)
  • No Support
  • Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
  • Best print orientation for maximum strength result
  • Easy to print
  • Easy to assemble
  • Easy to rescale

Point of articulation:
1. Neck ball joint
2. Abdomen ball joint
3. Shoulders ball joint
4. Upper arm swivel joint
5. Elbow ball joint
6. Wrist swivel
7. Waist swivel
8. Hip ball joint
9. Thigh swivel joint
10. Knee ball joint
11. Ankle ball joint

Accesories :

  • Gun

IMPORTANT TIPS:

  • Use Nail Polish to fix loose balljoints
  • Cutter or sand paper for tolerance adjustment
  • Use super glue for splited parts

Information

Files Type

.stl, .zip, .jpg

3d Print Setting

Nozzle: 0.4mm
Layer: 0.1mm
Filamen: PLA
Temperature: 200°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 25%

Disclaimer
  • Contains small parts and requires high precision. Your printer may need to be properly calibrated for best results.
  • This model is for fan art purposes only. The original Transformers characters are the property of Hasbro/Takara Tomy. The creator is in no way associated with the owners.
Information on technical characteristics, the delivery set and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.

File (object only) Preview

loading file

List of Files (21)

6_Bee_Chest2_Back_YELLOW.stl (493.15 KiB) -- login
7_Bee_Chest3_Window_LIGHTBLUE.stl (401.45 KiB) -- login
8_Bee_Chest4_Shoulderjoint_BLACK.stl (1024 KiB) -- login
9_Bee_Abdomen_BLACK.stl (742.27 KiB) -- login
10_Bee_Waist_YELLOW.stl (2 MiB) -- login
11_Bee_Hips_YELLOW.stl (2 MiB) -- login
12_Bee_Hand1_Shoulders_BLACK.stl (951.84 KiB) -- login
13_Bee_Hand2_Upperarms_BLACK.stl (5 MiB) -- login
14_Bee_Hand3_Lowerarms_YELLOW.stl (1024 KiB) -- login
15_Bee_Hand4_Fist_BLACK.stl (2 MiB) -- login
16_Bee_Leg1_Thigh_BLACK.stl (3 MiB) -- login
17_Bee_Leg2_Lowerleg_BLACK.stl (3 MiB) -- login
18_Bee_Leg3_Foot_YELLOW.stl (3 MiB) -- login
19_Bee_Leg4_Footacc_BLACK.stl (1024 KiB) -- login
20_Bee_Gun_LIGHTBLUE.stl (2 MiB) -- login
BeeInstruction.zip (294.24 KiB)
